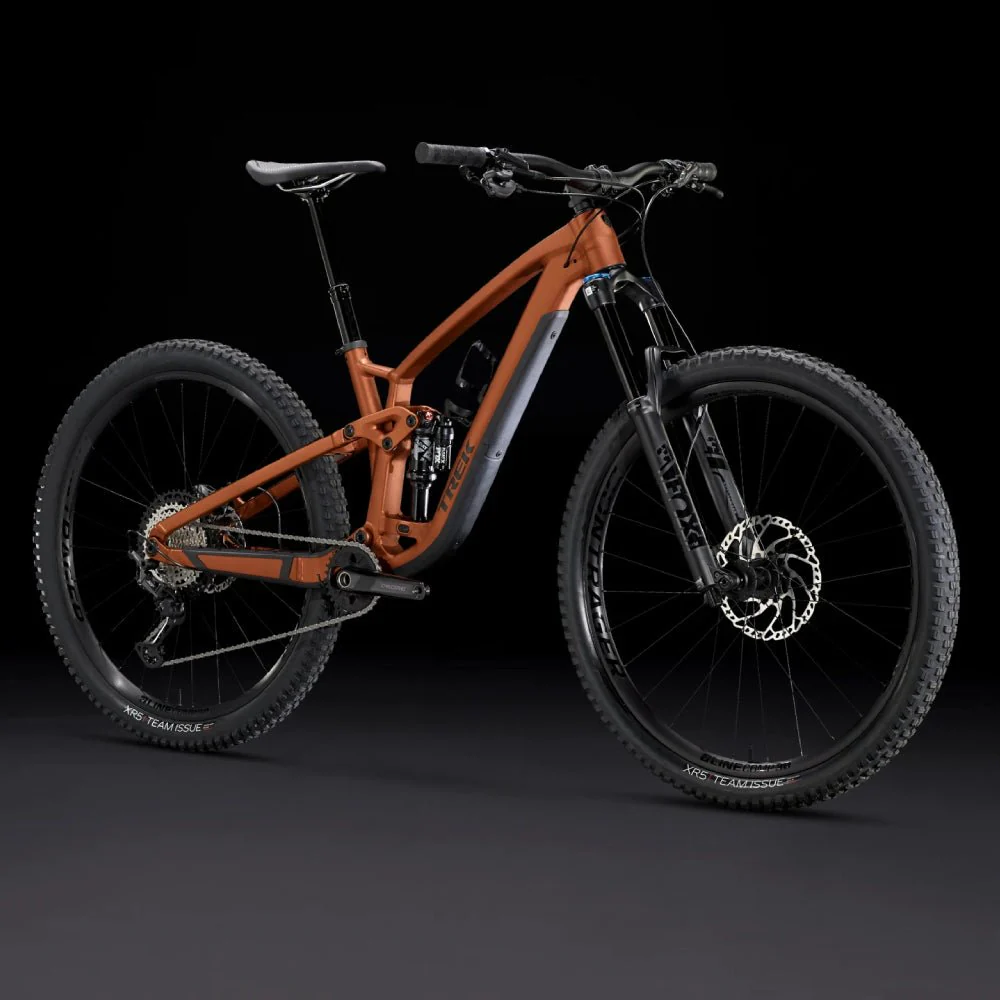

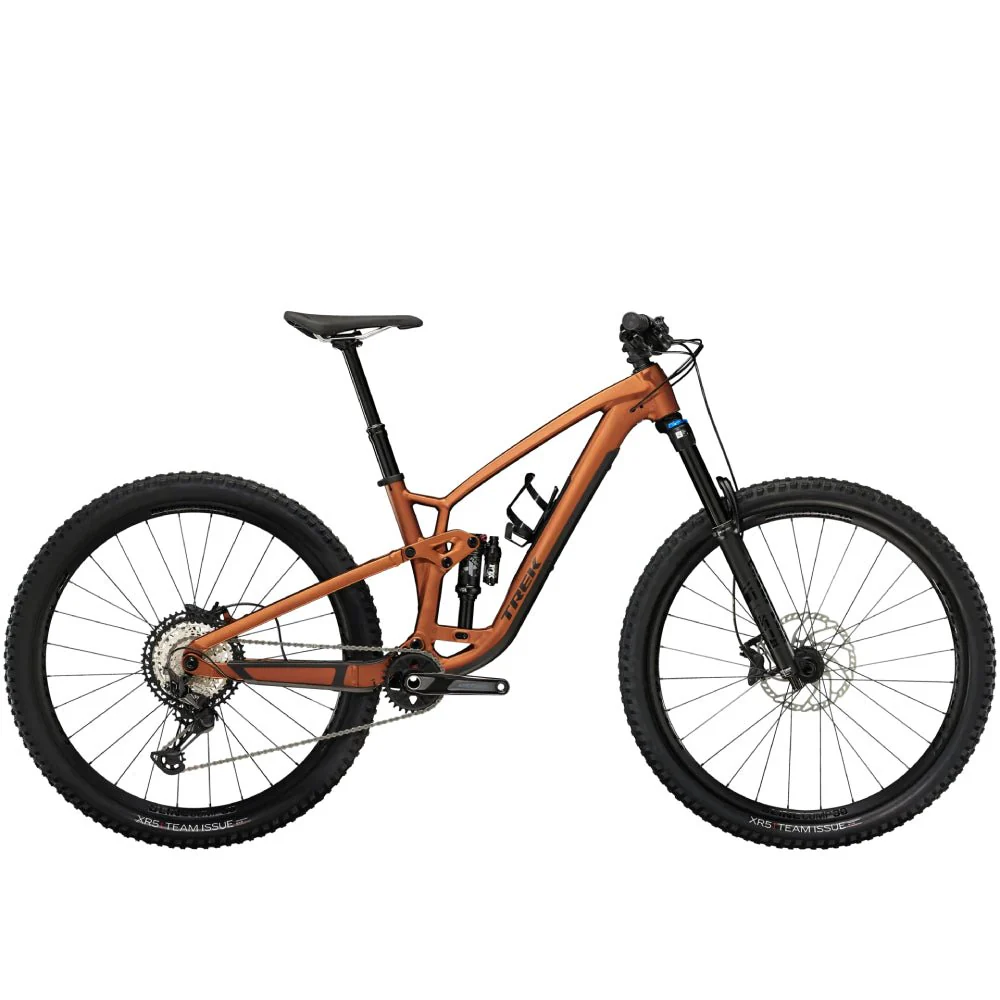

Trek Fuel EX 8 Gen 6 Bike

It's right for you if... 🚴‍♂️

You want a full suspension trail bike that prioritizes suspension and shifting performance over a more expensive carbon frame. For the rider who doesn't want to be limited on the trail, Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.

❣️ Why you'll love it ❣️

  1. This bike is built to take on the singletrack, with modern geometry that's evolved to handle the rough and rowdy
  2. You'll get upgraded components where it matters most, with 12-speed XT shifting, and a rock-gobbling FOX Rhythm 36 fork
  3. With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
  4. We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
  5. Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze

The tech you get 🛠️

A light and stiff alloy frame with 150mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A Shimano XT 12-speed drivetrain for snappy shifting, and tubeless-ready Bontrager wheels. Plus, new adjustable geometry that lets you take control of your setup.

SPECS

Specification Details
Frame   FRAME

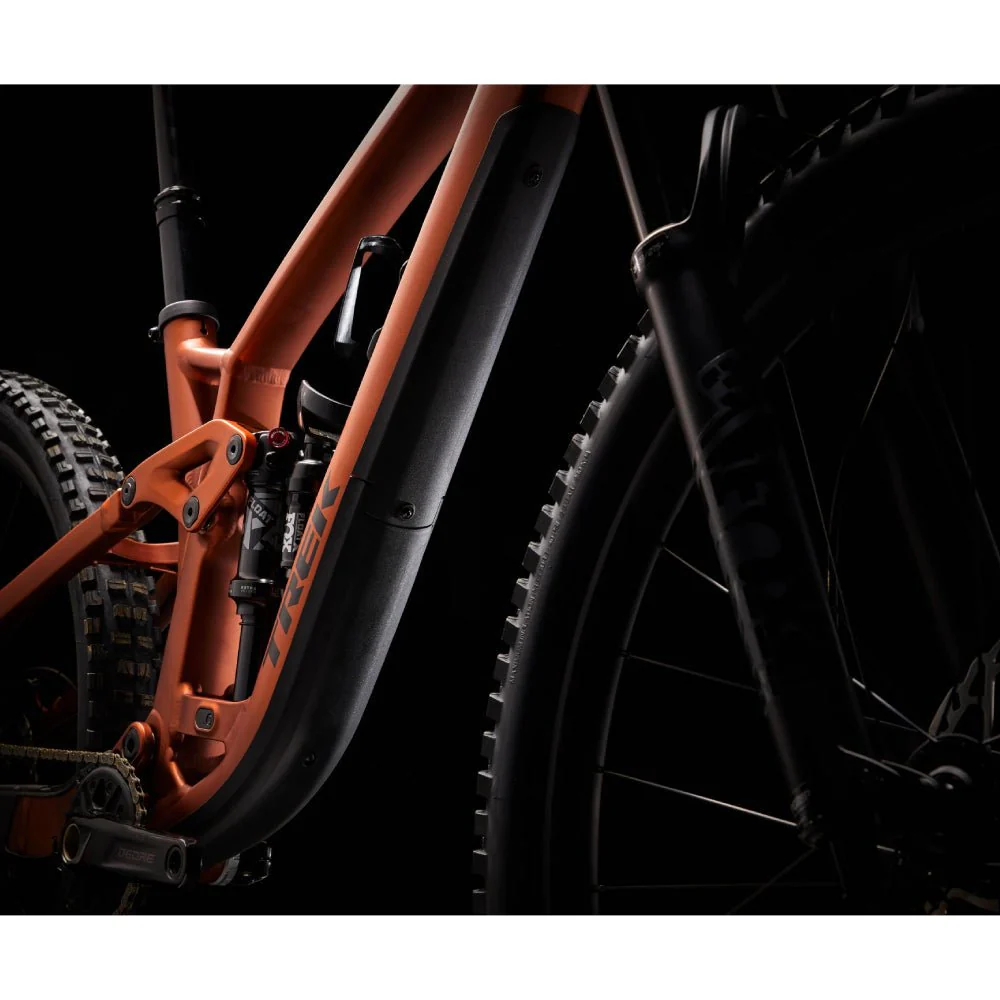

  • FRAME: Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
  • FORK: Size: S , M , ML , L , XL , XXL
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

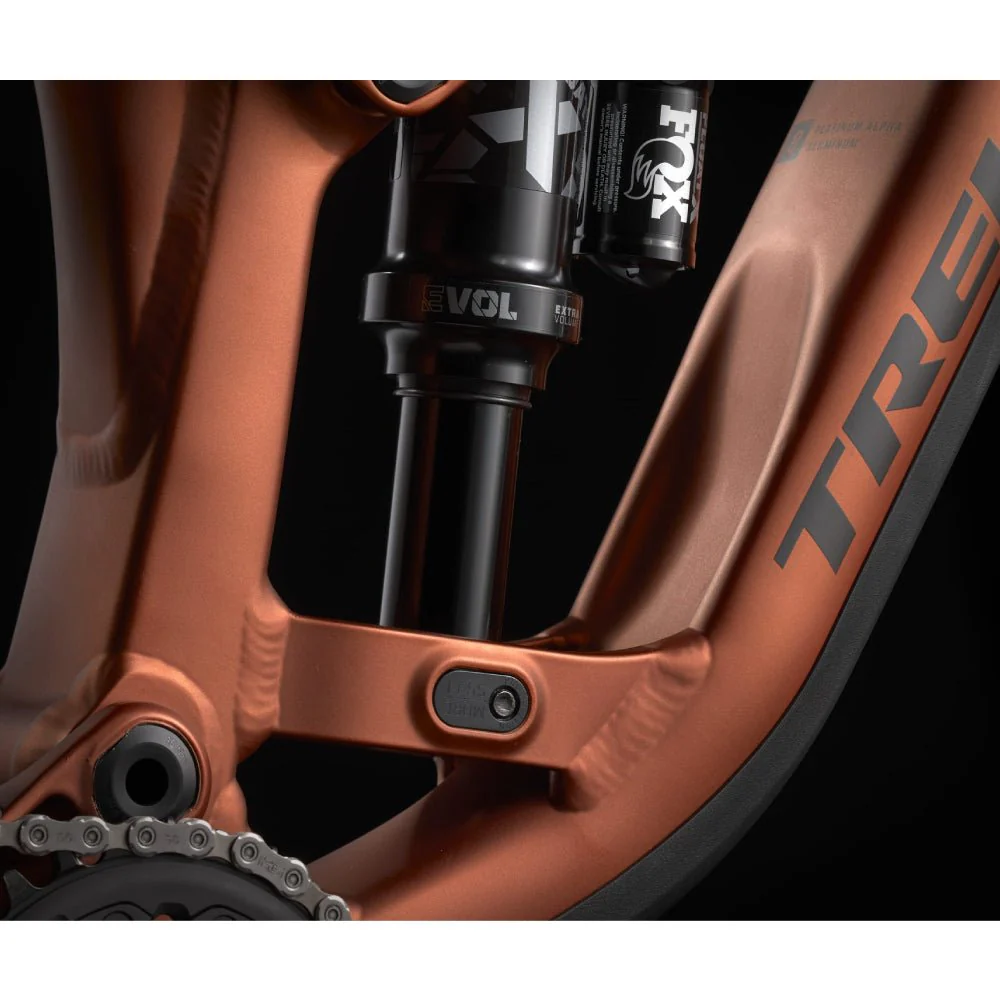

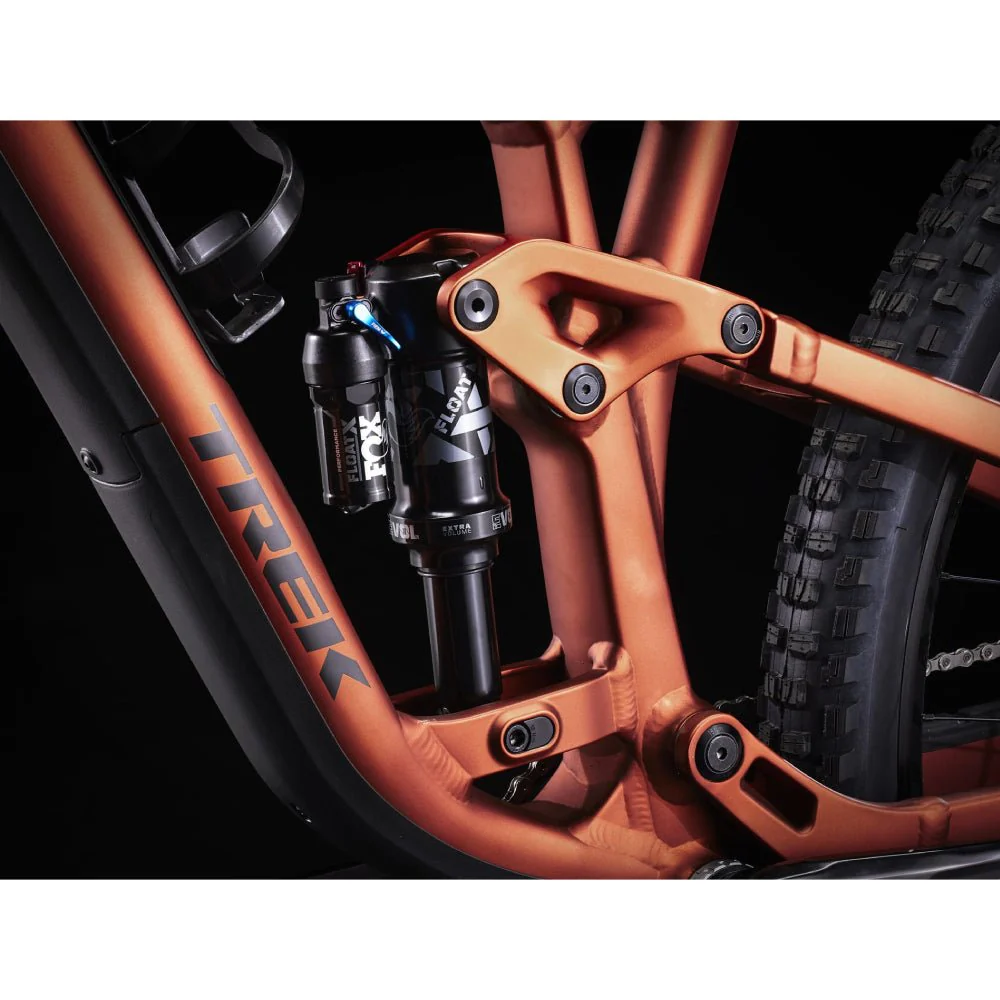

  • SHOCK: Fox Performance Float X, 2-position damper, 185mm x 55mm
  • MAX COMPATIBLE FORK TRAVEL: 160mm
Frame  WHEELS
  • WHEEL FRONT: Size: S , M , ML , L , XL , XXL
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • WHEEL REAR: Size: S , M , ML , L , XL , XXL
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
  • SKEWER REAR: Bontrager Switch thru axle, removable lever
  • TIRE: Size: S , M , ML , L , XL , XXL
    Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
  • TIRE PART: Bontrager TLR sealant, 180 ml/6 oz
  • RIM STRIP: Bontrager TLR
  • MAX TIRE SIZE: Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Frame DRIVETRAIN
  • SHIFTER: Shimano XT M8100, 12 speed

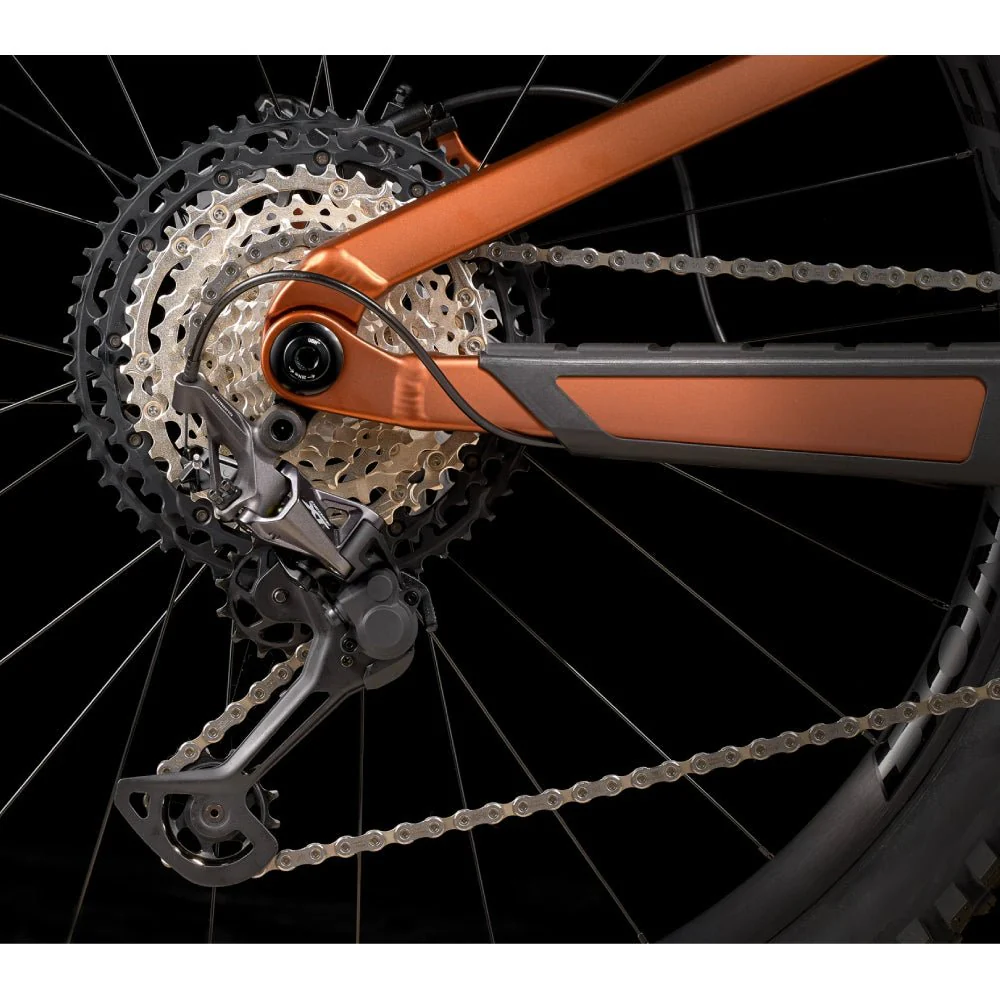

  • REAR DERRAILLEUR: Shimano XT M8100, long cage
  • CRANK: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
  • BOTTOM BRACKET: Shimano BB-MT501 BSA
  • CASSETTE: Shimano XT M8100, 10-51, 12 speed
  • CHAIN: Shimano SLX M7100, 12 speed
  • MAX CHAINRING SIZE: 1x: 34T round, 32T oval, min 28T
  COMPONENTS
  • SADDLE: Bontrager Arvada, hollow chromoly rails, 138 mm width
  • SEATPOST:Size: M , ML: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
  • HANDLEBAR: Size: M , ML , L , XL , XXL
    Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
  • GRIPS: Bontrager XR Trail Elite, nylon lock-on
  • STEM: Size: M , ML , L , XL , XXL
    Bontrager Elite, 35mm, 0 degree, 45mm length

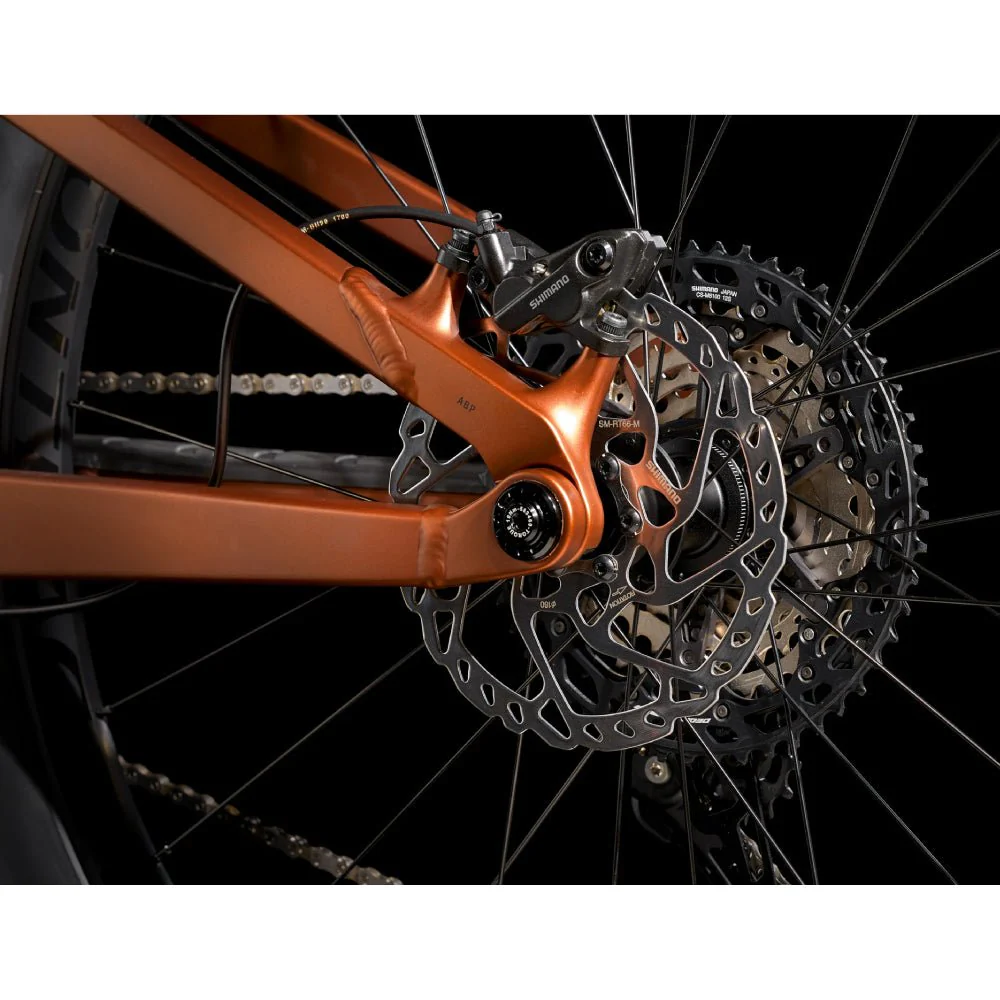

  • BRAKE: Shimano 105 hydraulic disc, flat mount
  • HEADSET: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • BRAKE ROTOR: Size: XS , S , M , ML , L , XL , XXL
    Shimano RT66, 6-bolt, 180mm // Size: XS , S , M , ML , L , XL , XXL
    Shimano RT66, 6-bolt, 203mm
  • ROTOR SIZE: Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Frame ACCESSORIES

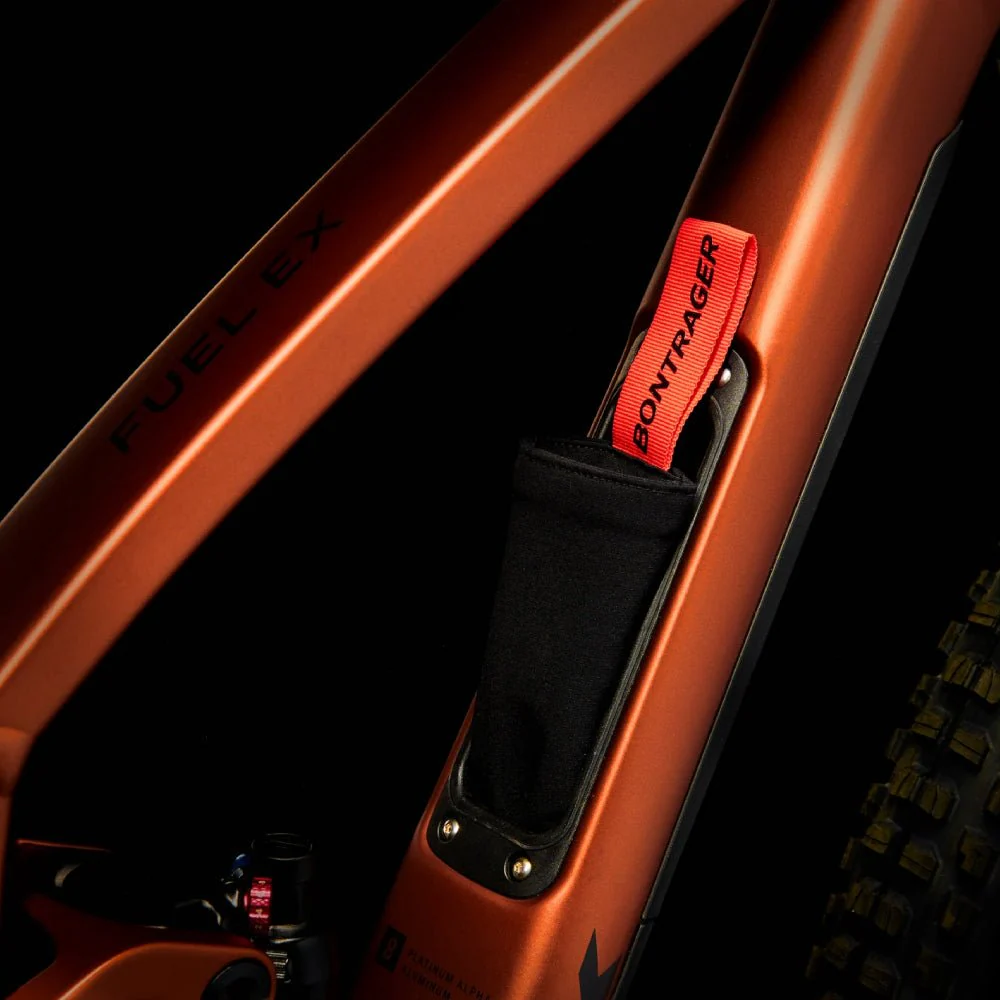

  • BAG: Bontrager BITS Internal Frame Storage Bag
Frame WEIGHT
M - 15.65 kg / 34.51 lbs (with TLR sealant, no tubes) This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

TECHNOLOGY

Complete Tubeless System

Tubeless ready rims and tires make it easy to ditch the tubes so you get better traction,fewer flats and less weight. You're ready to roll right out of the box with the included TLR rim strips, valves, and sealant.

Threaded Bottom Bracket

Most robust than pressfit, threaded BBs hold it up in nasty conditions and make servicing easier.

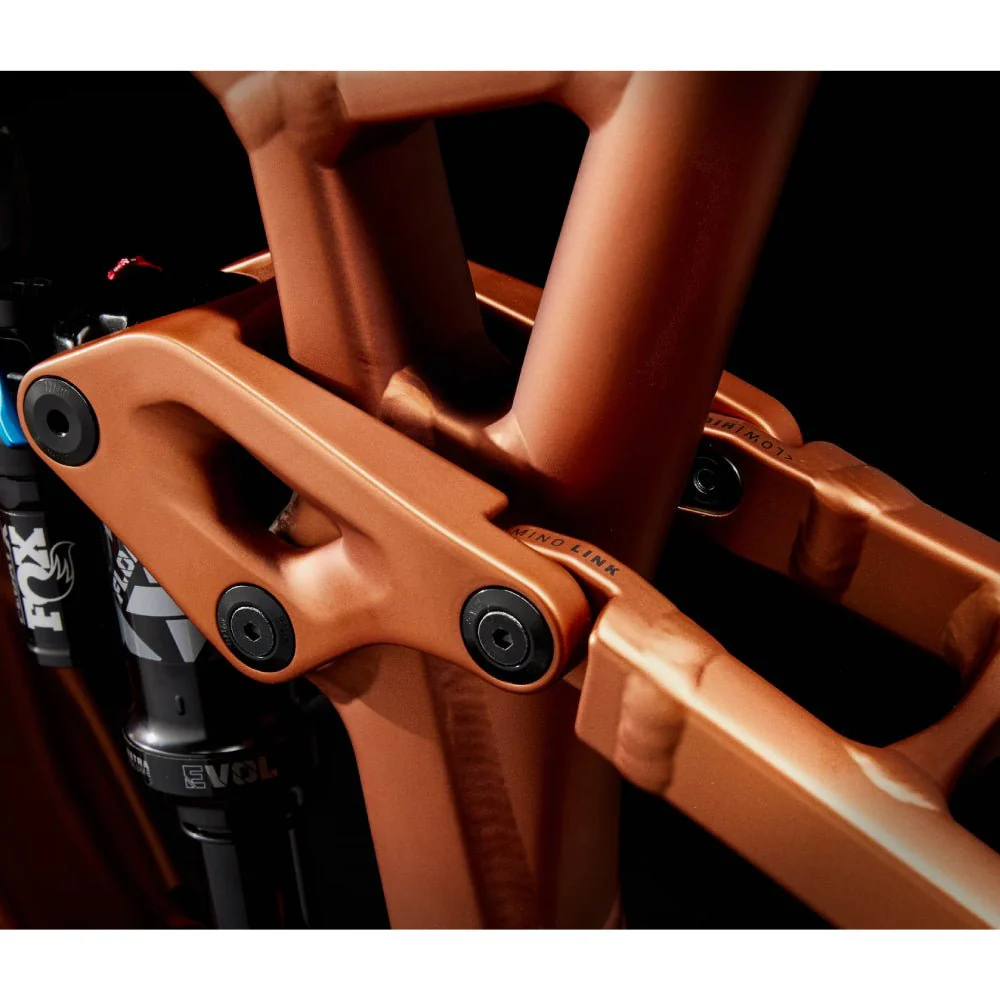

Mino Link Adjustable Geometry

Fine tune head tube angle by 1/2 degree and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting the suspension performance.

Select Color
Select Size
From $2,899.37
Trek Fuel EX 8 Gen 6 Bike—
$2,899.37

Product Information

Shipping & Returns

Description

It's right for you if... 🚴‍♂️

You want a full suspension trail bike that prioritizes suspension and shifting performance over a more expensive carbon frame. For the rider who doesn't want to be limited on the trail, Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.

❣️ Why you'll love it ❣️

  1. This bike is built to take on the singletrack, with modern geometry that's evolved to handle the rough and rowdy
  2. You'll get upgraded components where it matters most, with 12-speed XT shifting, and a rock-gobbling FOX Rhythm 36 fork
  3. With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
  4. We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
  5. Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze

The tech you get 🛠️

A light and stiff alloy frame with 150mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A Shimano XT 12-speed drivetrain for snappy shifting, and tubeless-ready Bontrager wheels. Plus, new adjustable geometry that lets you take control of your setup.

SPECS

Specification Details
Frame   FRAME
  • FRAME: Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
  • FORK: Size: S , M , ML , L , XL , XXL
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
  • SHOCK: Fox Performance Float X, 2-position damper, 185mm x 55mm
  • MAX COMPATIBLE FORK TRAVEL: 160mm
Frame  WHEELS
  • WHEEL FRONT: Size: S , M , ML , L , XL , XXL
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • WHEEL REAR: Size: S , M , ML , L , XL , XXL
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
  • SKEWER REAR: Bontrager Switch thru axle, removable lever
  • TIRE: Size: S , M , ML , L , XL , XXL
    Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
  • TIRE PART: Bontrager TLR sealant, 180 ml/6 oz
  • RIM STRIP: Bontrager TLR
  • MAX TIRE SIZE: Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Frame DRIVETRAIN
  • SHIFTER: Shimano XT M8100, 12 speed
  • REAR DERRAILLEUR: Shimano XT M8100, long cage
  • CRANK: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
  • BOTTOM BRACKET: Shimano BB-MT501 BSA
  • CASSETTE: Shimano XT M8100, 10-51, 12 speed
  • CHAIN: Shimano SLX M7100, 12 speed
  • MAX CHAINRING SIZE: 1x: 34T round, 32T oval, min 28T
  COMPONENTS
  • SADDLE: Bontrager Arvada, hollow chromoly rails, 138 mm width
  • SEATPOST:Size: M , ML: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
  • HANDLEBAR: Size: M , ML , L , XL , XXL
    Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
  • GRIPS: Bontrager XR Trail Elite, nylon lock-on
  • STEM: Size: M , ML , L , XL , XXL
    Bontrager Elite, 35mm, 0 degree, 45mm length
  • BRAKE: Shimano 105 hydraulic disc, flat mount
  • HEADSET: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • BRAKE ROTOR: Size: XS , S , M , ML , L , XL , XXL
    Shimano RT66, 6-bolt, 180mm // Size: XS , S , M , ML , L , XL , XXL
    Shimano RT66, 6-bolt, 203mm
  • ROTOR SIZE: Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Frame ACCESSORIES
  • BAG: Bontrager BITS Internal Frame Storage Bag
Frame WEIGHT
M - 15.65 kg / 34.51 lbs (with TLR sealant, no tubes) This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

TECHNOLOGY

Complete Tubeless System

Tubeless ready rims and tires make it easy to ditch the tubes so you get better traction,fewer flats and less weight. You're ready to roll right out of the box with the included TLR rim strips, valves, and sealant.

Threaded Bottom Bracket

Most robust than pressfit, threaded BBs hold it up in nasty conditions and make servicing easier.

Mino Link Adjustable Geometry

Fine tune head tube angle by 1/2 degree and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting the suspension performance.
