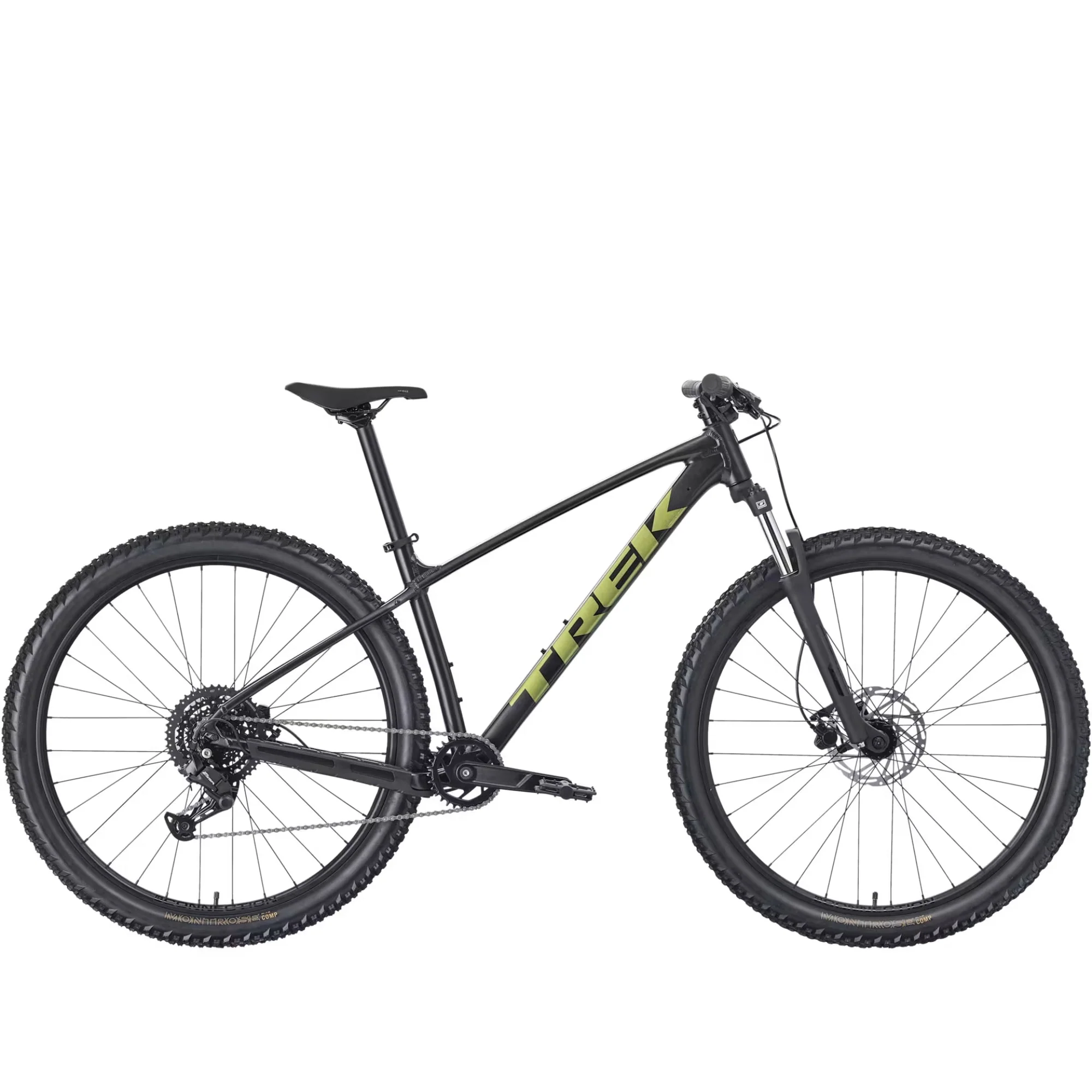

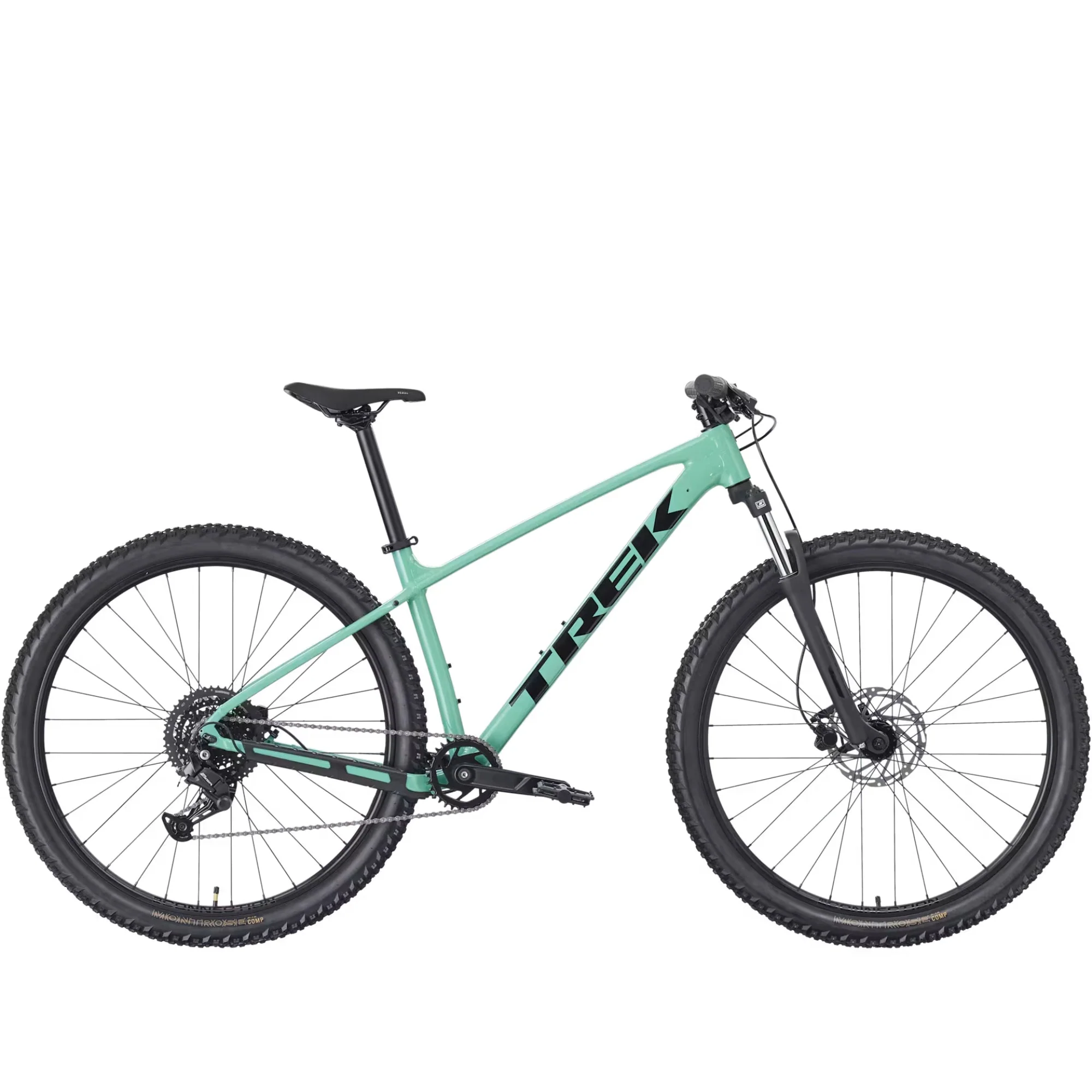

Trek Marlin 4 Gen 3 Bike

FRAMESET
*FRAME	Size: XXS , XS - Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew Size: S , M , ML , L , XL - Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*FORK	Size: XS - SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel Size: S - SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm trave Size: M , ML , L , XL - SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

WHEELS
HUB FRONT	Formula DC-20, alloy, 6-bolt, 100x5mm
SKEWER FRONT	Rychloupínák 116 x 5 mm
HUB REAR	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
SKEWER REAR	173x5mm QR
RIM	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
TIRE	Size: XS , S - Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4" Size: M , ML , L , XL - Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4"

DRIVETRAIN
SHIFTER	Shimano M315, 8 speed
REAR DERAILLEUR	Shimano ESSA U2000
CRANK	Size: XXS , XS - ProWheel alloy, 30T narrow-wide steel ring, 160mm length Size: S , M , ML - ProWheel alloy, 30T narrow-wide steel ring, 170mm length Size: L , XL - ProWheel alloy, 30T narrow-wide steel ring, 175mm length
BOTTOM BRACKET	Threaded bearing
CASSETTE	Shimano HG300, 11-45, 8 speed
CHAIN	KMC Z8.3, 8 speed
PEDAL	nylon platform

COMPONENTS
SADDLE	Bontrager Verse Short, stainless steel rails
*SEATPOST	Size: XS , S , M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size: ML , L , XL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*HANDLEBAR	Size: XXS , XS - Bontrager alloy, 31.8mm, 5mm rise, 690mm width Size: S - Bontrager alloy, 31.8mm, 15mm rise, 720mm width Size: M , ML , L , XL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
*STEM	Size: XXS , XS , S - Bontrager Comp, 31.8mm, 7 degree, 35mm length Size: M , ML , L - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
HEADSET	Semi-integrated, 1-1/8''
BRAKE	Size: XXS , XS , S - Tektro HD-M276 hydraulic disc Size: XXS , XS , S , M , ML , L , XL - Power BH-M286TF hydraulic disc, 160mm rotor Size: M , ML , L , XL - Tektro HD-M275 hydraulic disc Size: M , ML , L , XL - Power BH-M286TF hydraulic disc, 180mm rotor
BRAKE ROTOR	Size: XXS , XS , S , M , ML , L , XL - Tektro, 6-bolt, 160mm Size: M , ML , L , XL - Tektro, 6-bolt, 180mm

WEIGHT
WEIGHT	M - 14.90 kg / 32.85 lbs
WEIGHT LIMIT	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.

Select Color

Select Size

From $192.73

Original: $550.65

Trek Marlin 4 Gen 3 Bike—

$550.65

$192.73
