Trek FX Sport 5 Carbon Bike

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

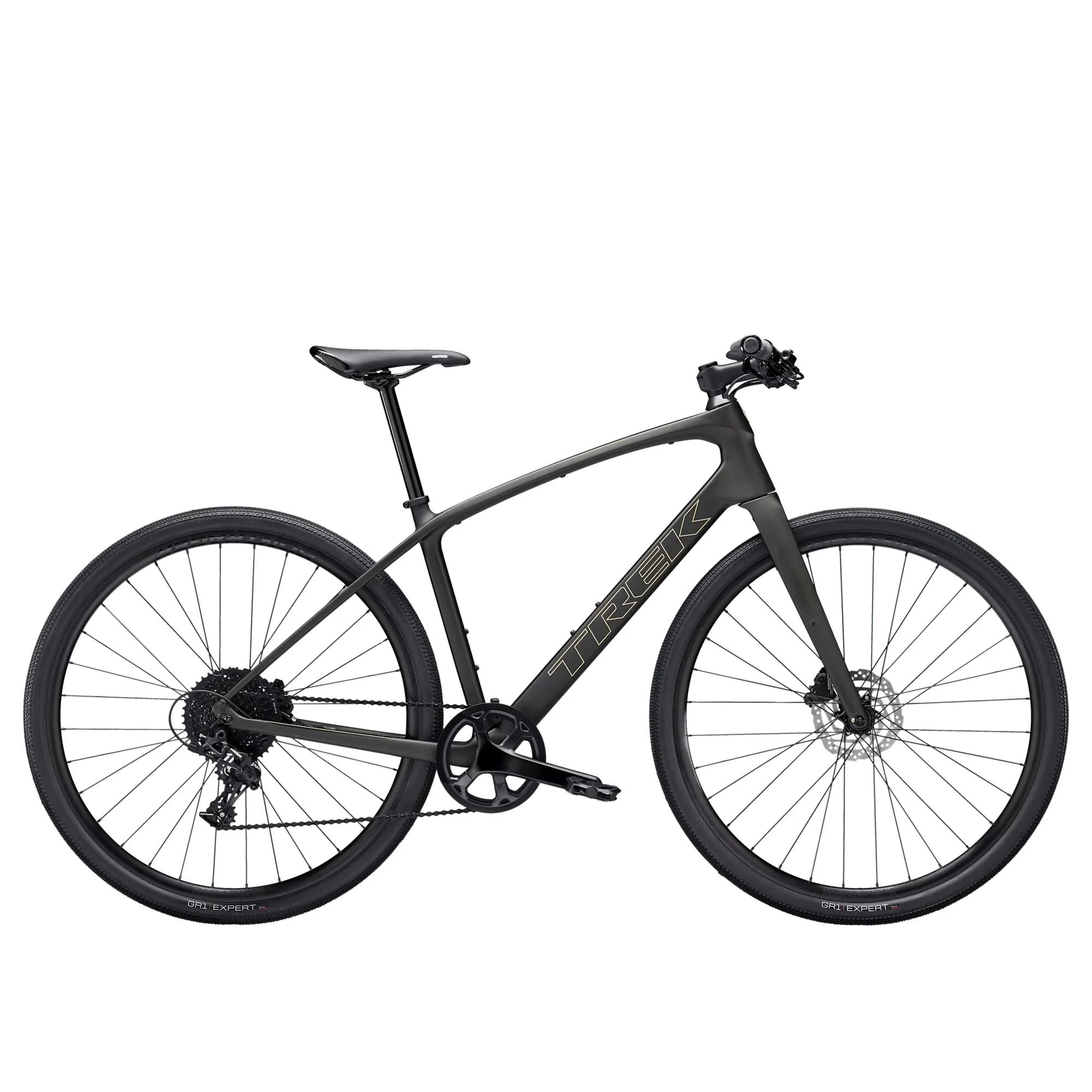

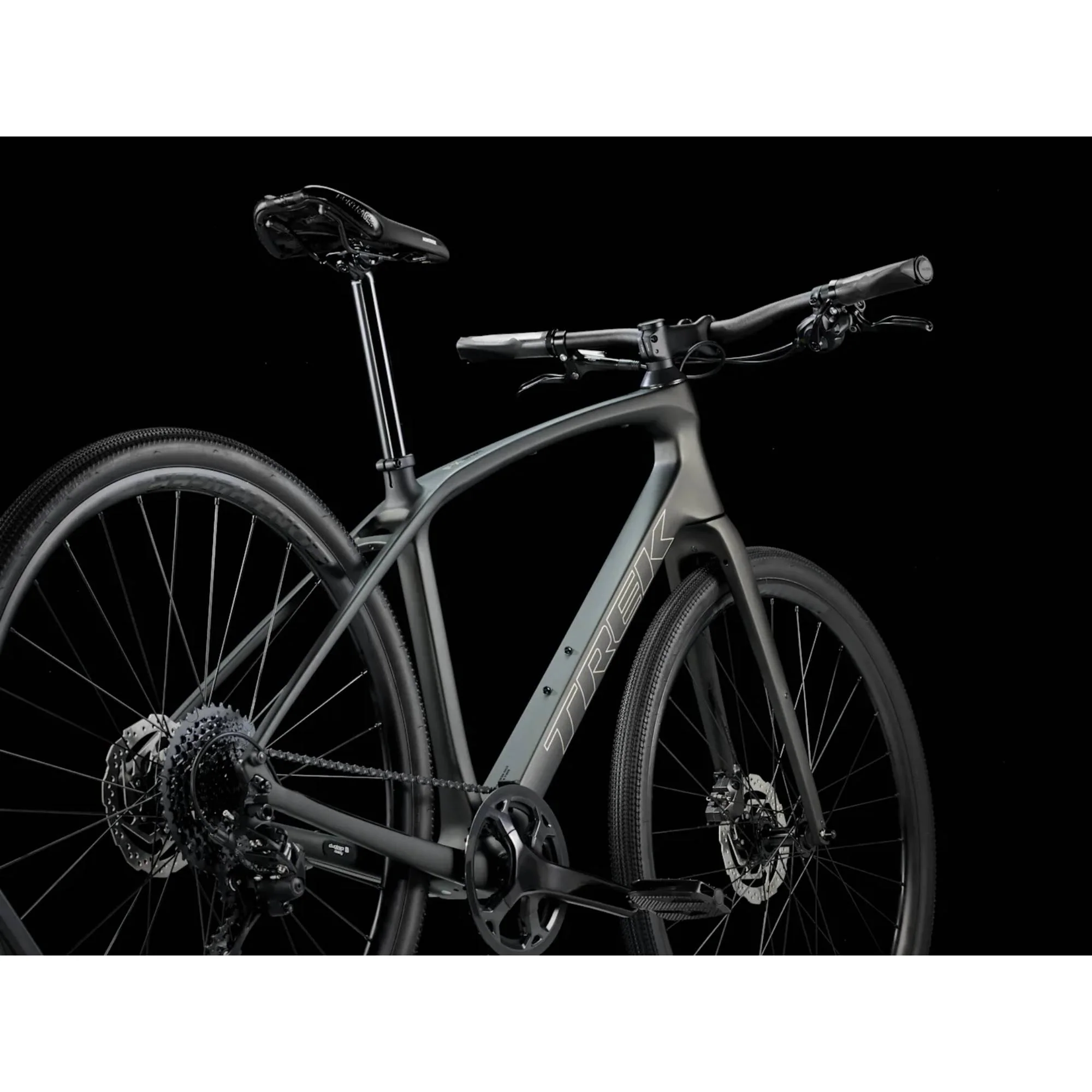

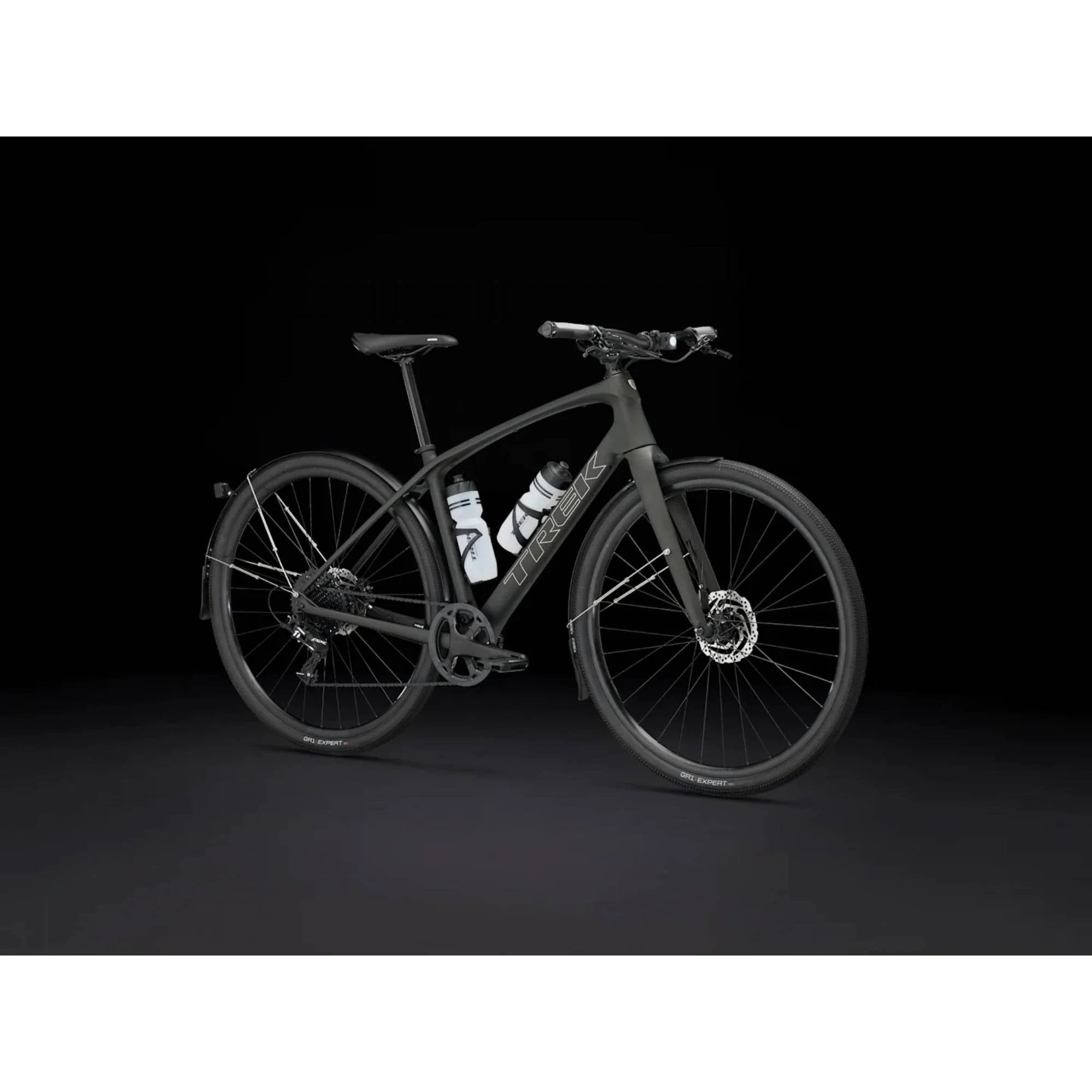

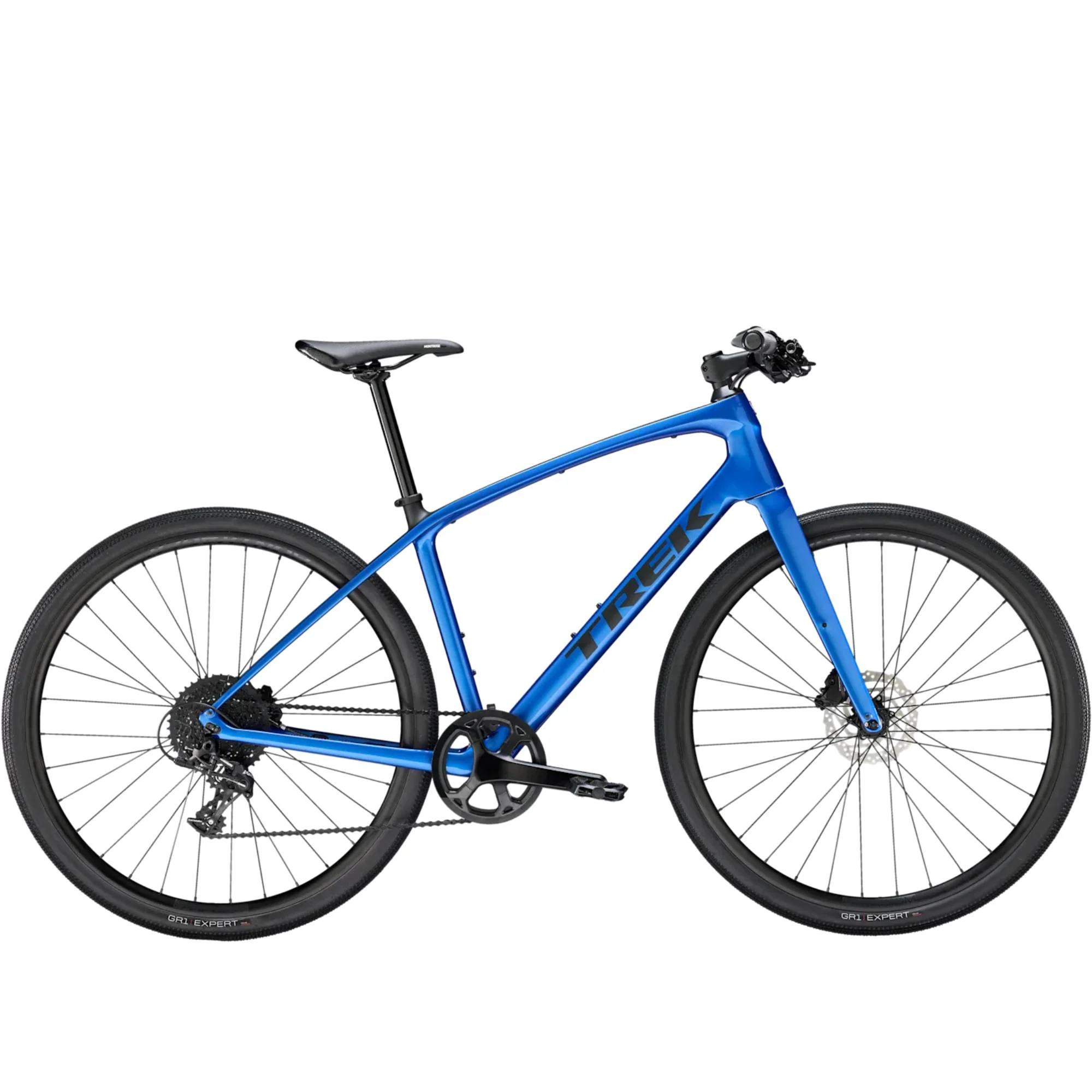

Trek FX Sport 5 Carbon Bike

It's right for you if...

You're ready to log big miles, and you prefer the feel of a flat handlebar to the drop bars that come stock on most road bikes. You prioritize comfort and performance equally, and expect your bike to grow with you as you advance in speed and distance.

♡ Why you'll love it ♡

  1. All the performance of an advanced carbon road bike, with the comfort and control that comes from a flat handlebar
  2. The 1x drivetrain delivers a wide range of gearing with the simplicity of a single shifter
  3. On your left! This fitness bike is more than capable of taking on speedy group road rides
  4. It's easy to accessorize with fenders, lights, and more!

The tech you get

A lightweight 400 Series OCLV Carbon frame and fork, a 1x SRAM Apex drivetrain with a wide range of gearing, hydraulic disc brakes, hidden fender mounts, a lightweight tubeless-ready Bontrager Paradigm alloy wheelset, wide, fast-rolling Bontrager GR1 Expert gravel tires, and a vibration-absorbing handlebar with ergonomic grips.

SPECS

FRAMESET
FRAME 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat-mount disc, 135x5 mm ThruSkew
FORK Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew
WHEELS
FRONT HUB Formula CL-51 alloy, 100x5mm QR
REAR HUB Formula CL-52 alloy, 135x5mm QR
FRONT SKEWER 135x5mm bolt-on
REAR SKEWER 169x5mm bolt-on
RIM Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
TIRES Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
MAX TIRE SIZE 42mm without fenders, 40mm with fenders

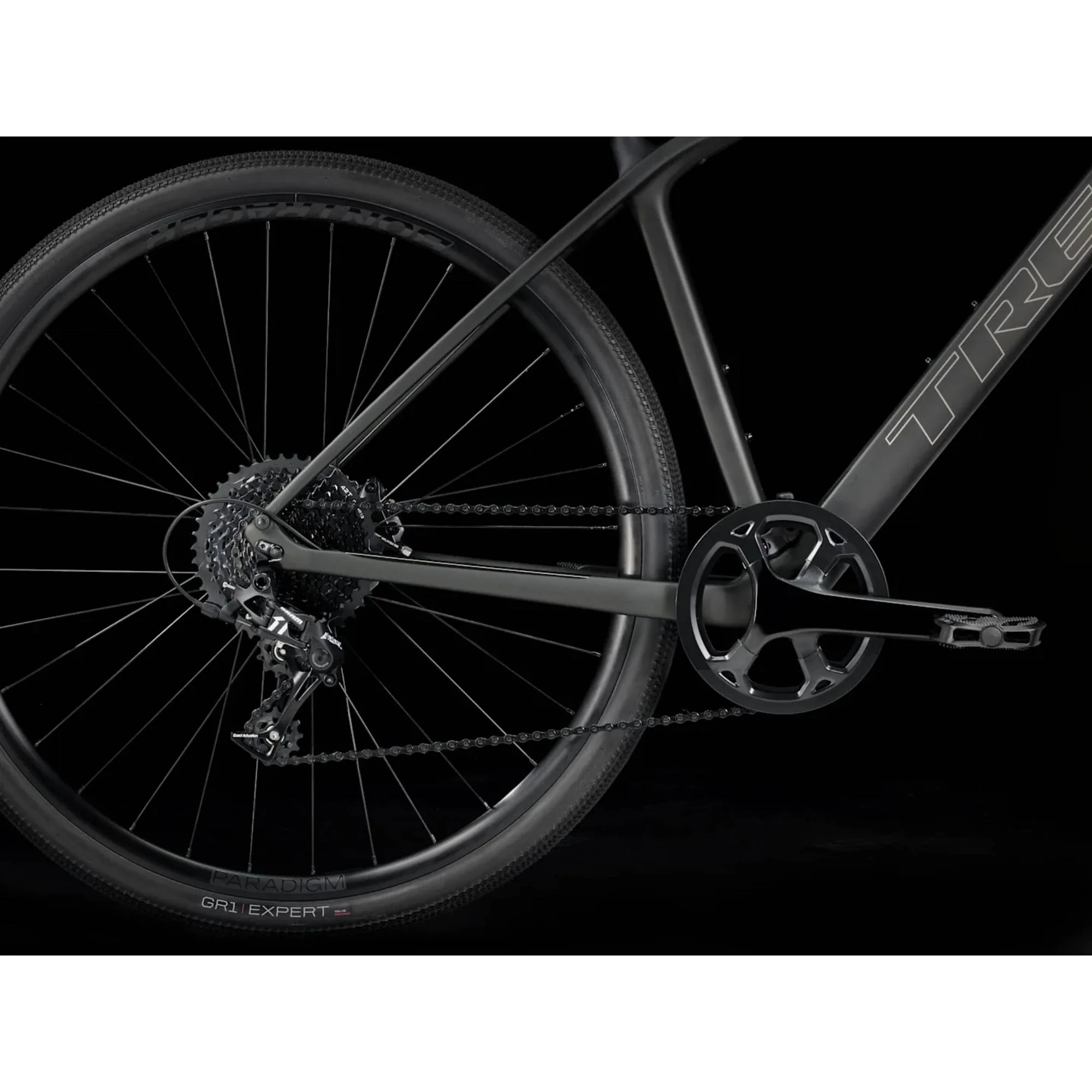

DRIVETRAIN
SHIFTER SRAM Apex, 11 speed
CRANK Prowheel alloy, 42T narrow-wide ring, 175 mm length
REAR DERAILLEUR SRAM Apex 1, long cage, 42T max cog
CASSETTE microSHIFT XLE, 11-42, 11 speed
CHAIN KMC X11
PEDAL Bontrager City pedals
COMPONENTS
SADDLE Bontrager Montrose Comp, steel rails, 138 mm width
SEATPOST Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

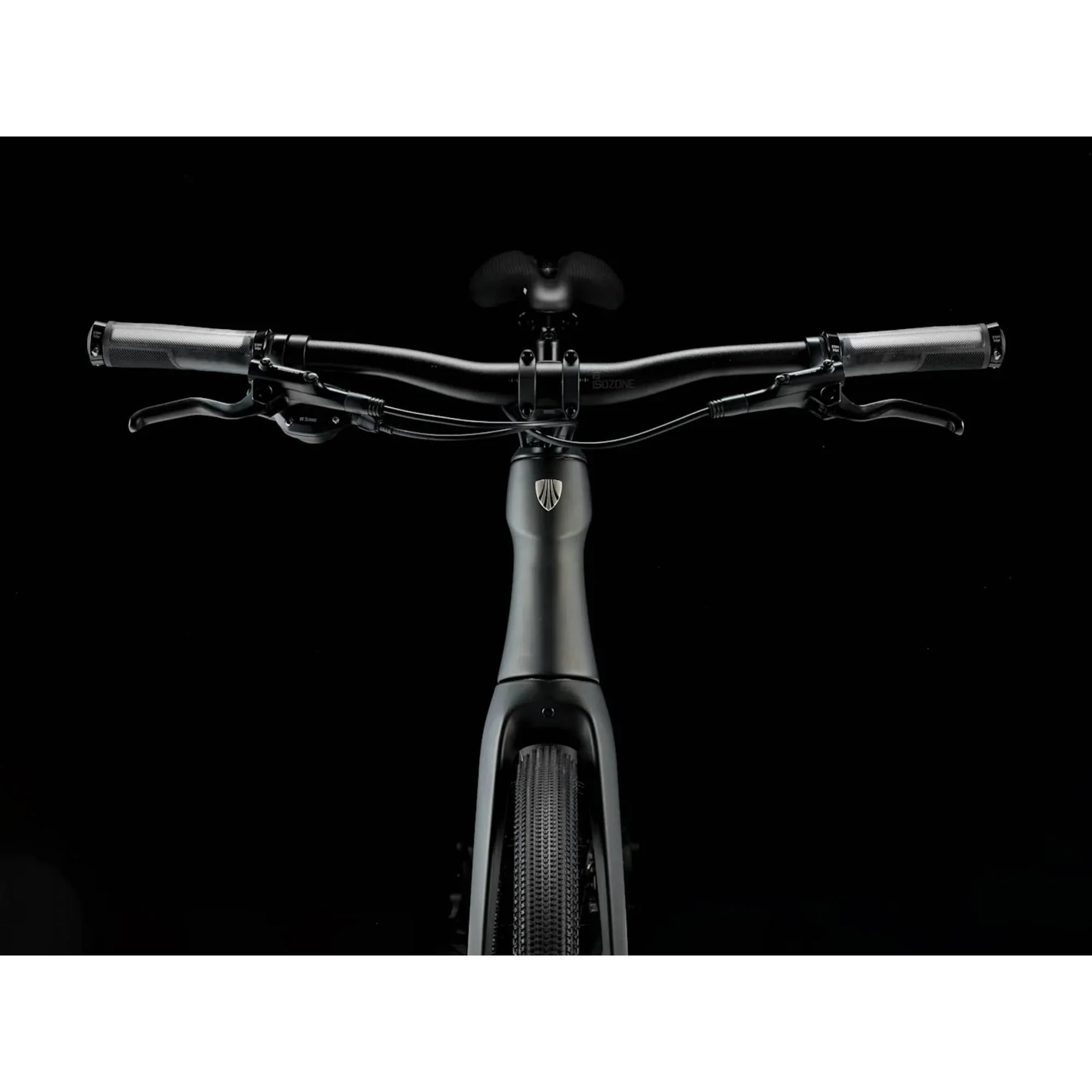

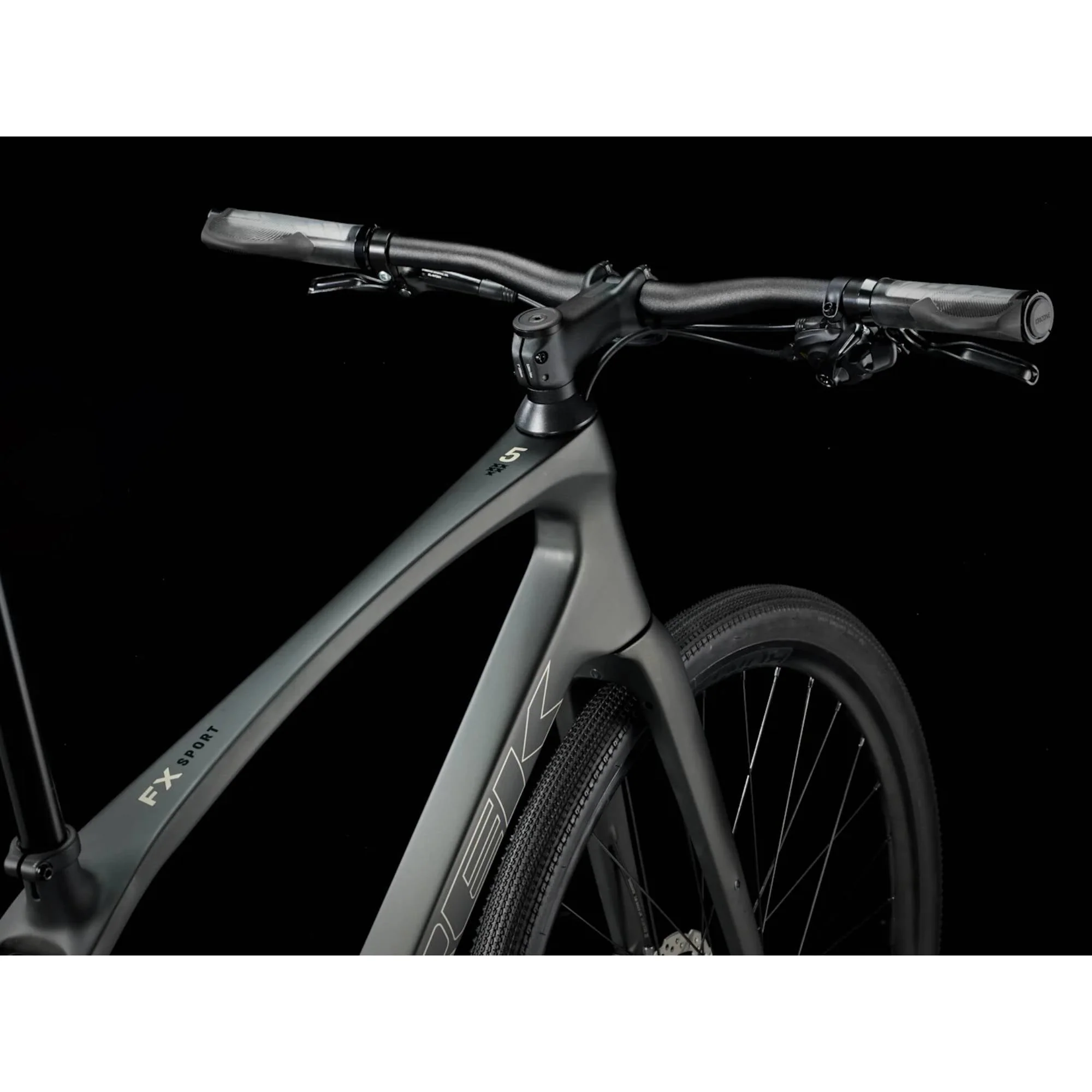

HANDLEBAR Size: S = Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: M-L = Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
GRIPS Bontrager Satellite IsoZone Plus, lock-on, ergonomic
STEM Size: S-M = Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: L = Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
BRAKE Shimano hydraulic disc, MT201 lever, UR300 caliper
BRAKE ROTOR Shimano RT10, CenterLock, 160 mm
ROTOR SIZE Max brake rotor sizes: 160mm front & rear
WEIGHT
BIKE WEIGHT M - 10.30 kg / 22.71 lbs
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
⚠️
Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
Select Color
Select Size
From $675.83

Original: $1,930.95

-65%
Trek FX Sport 5 Carbon Bike—

$1,930.95

$675.83

Product Information

Shipping & Returns

Description

It's right for you if...

You're ready to log big miles, and you prefer the feel of a flat handlebar to the drop bars that come stock on most road bikes. You prioritize comfort and performance equally, and expect your bike to grow with you as you advance in speed and distance.

♡ Why you'll love it ♡

  1. All the performance of an advanced carbon road bike, with the comfort and control that comes from a flat handlebar
  2. The 1x drivetrain delivers a wide range of gearing with the simplicity of a single shifter
  3. On your left! This fitness bike is more than capable of taking on speedy group road rides
  4. It's easy to accessorize with fenders, lights, and more!

The tech you get

A lightweight 400 Series OCLV Carbon frame and fork, a 1x SRAM Apex drivetrain with a wide range of gearing, hydraulic disc brakes, hidden fender mounts, a lightweight tubeless-ready Bontrager Paradigm alloy wheelset, wide, fast-rolling Bontrager GR1 Expert gravel tires, and a vibration-absorbing handlebar with ergonomic grips.

SPECS

FRAMESET
FRAME 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat-mount disc, 135x5 mm ThruSkew
FORK Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew
WHEELS
FRONT HUB Formula CL-51 alloy, 100x5mm QR
REAR HUB Formula CL-52 alloy, 135x5mm QR
FRONT SKEWER 135x5mm bolt-on
REAR SKEWER 169x5mm bolt-on
RIM Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
TIRES Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
MAX TIRE SIZE 42mm without fenders, 40mm with fenders
DRIVETRAIN
SHIFTER SRAM Apex, 11 speed
CRANK Prowheel alloy, 42T narrow-wide ring, 175 mm length
REAR DERAILLEUR SRAM Apex 1, long cage, 42T max cog
CASSETTE microSHIFT XLE, 11-42, 11 speed
CHAIN KMC X11
PEDAL Bontrager City pedals
COMPONENTS
SADDLE Bontrager Montrose Comp, steel rails, 138 mm width
SEATPOST Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
HANDLEBAR Size: S = Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: M-L = Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
GRIPS Bontrager Satellite IsoZone Plus, lock-on, ergonomic
STEM Size: S-M = Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: L = Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
BRAKE Shimano hydraulic disc, MT201 lever, UR300 caliper
BRAKE ROTOR Shimano RT10, CenterLock, 160 mm
ROTOR SIZE Max brake rotor sizes: 160mm front & rear
WEIGHT
BIKE WEIGHT M - 10.30 kg / 22.71 lbs
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
⚠️
Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
