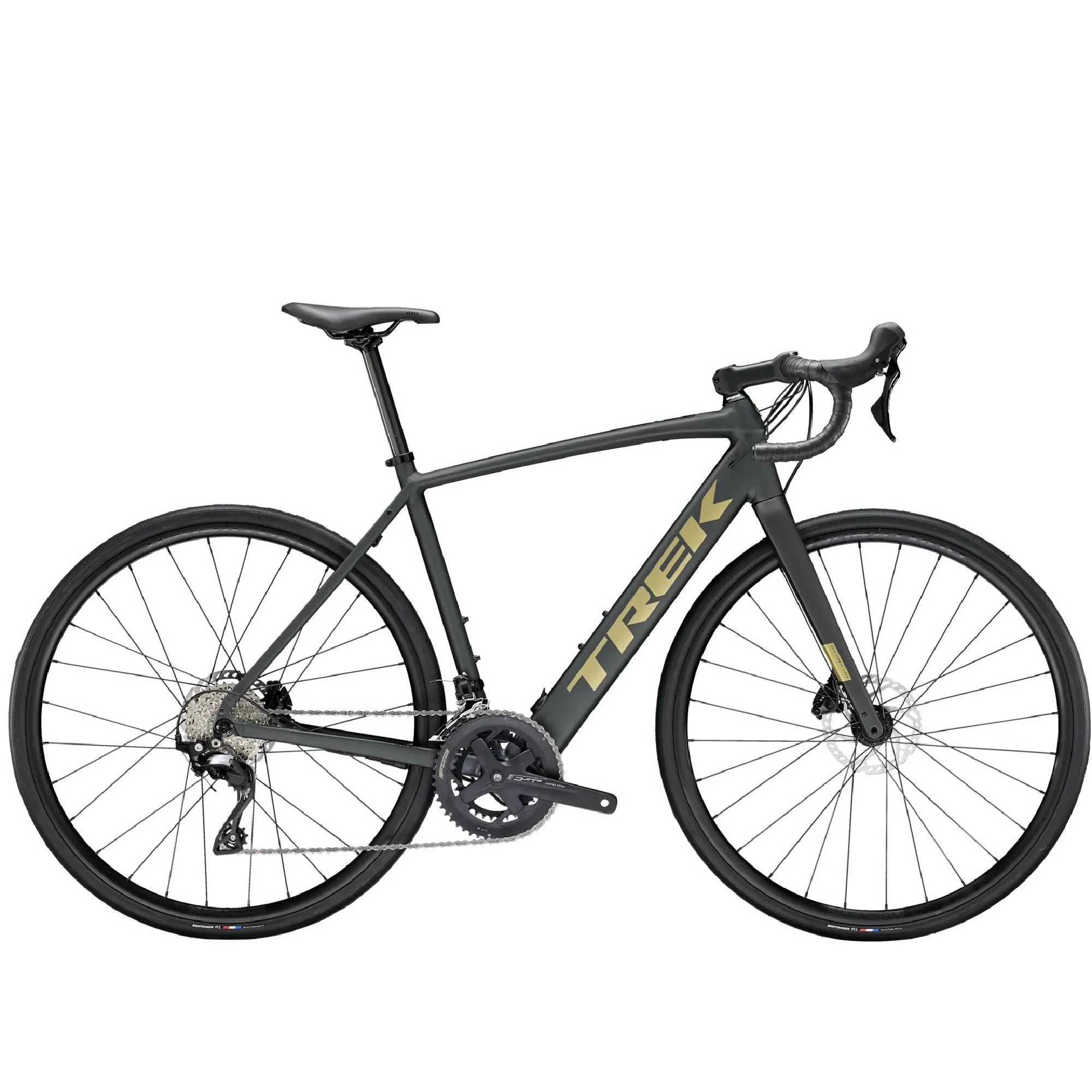

Trek Domane + AL 5 Bike

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Trek Domane + AL 5 Bike

It's right for you if...

You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

♡ Why you'll love it ♡

  1. This e-road bike looks, rides, and feels more like a traditional road bike
  2. The HyDrive pedal assist system has a hub motor for a more natural ride feel
  3. Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display
  4. The stable Endurance Geometry delivers comfort and confidence
  5. An optional 250Wh Range Extender battery with a tool-free quick-mount system lets you easily swap your seat tube bottle cage for double the battery life

The tech you get

A lightweight aluminum frame and fork, a natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 20 mph with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x12 drivetrain, tubeless ready wheels, and vibration-absorbing Elite IsoZone handlebars.

SPECS

FRAMESET
FRAME 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
FORK Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
WHEELS
FRONT HUB Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
FRONT SKEWER Bontrager Switch thru axle, removable lever
RIM Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
TIRES Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
MAX TIRE SIZE 38mm without fenders, 32mm with fenders
DRIVETRAIN
SHIFTER Shimano 105 R7120, 12 speed
CRANK FSA Vero Pro, 50/34, 172.5mm length
FRONT DERAILLEUR Shimano 105 R7100, 31.8mm clamp, down swing
REAR DERAILLEUR Shimano 105 R7100, 36T max cog
CASSETTE Shimano 105 7101, 11-34, 12 speed
CHAIN Shimano SLX M7100, 12 speed
BOTTOM BRACKET Torque sensor, threaded, 110mm spindle
COMPONENTS
SADDLE Bontrager Verse P3, steel rails
SEATPOST Bontrager carbon, 27.2mm, 8mm offset, 330mm length
HANDLEBAR Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
HANDLEBAR TAPE Bontrager Supertack Perf tape
STEM Size: 54 = Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56 = Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
HEADSET FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
BRAKE ROTOR Shimano RT66, 6-bolt, 160mm
ROTOR SIZE Max brake rotor sizes: 160mm front & rear
E-SYSTEM
BATTERY 250Wh, integrated in down tube
CHARGER 2A, 42V output, 100V-240V AC input
MOTOR Hyena hub drive motor, 40Nm, 250W
Select Color
Select Size
From $822.05

Original: $2,348.72

-65%
Trek Domane + AL 5 Bike—

$2,348.72

$822.05

Product Information

Shipping & Returns

Description

It's right for you if...

You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

♡ Why you'll love it ♡

  1. This e-road bike looks, rides, and feels more like a traditional road bike
  2. The HyDrive pedal assist system has a hub motor for a more natural ride feel
  3. Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display
  4. The stable Endurance Geometry delivers comfort and confidence
  5. An optional 250Wh Range Extender battery with a tool-free quick-mount system lets you easily swap your seat tube bottle cage for double the battery life

The tech you get

A lightweight aluminum frame and fork, a natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 20 mph with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x12 drivetrain, tubeless ready wheels, and vibration-absorbing Elite IsoZone handlebars.

SPECS

FRAMESET
FRAME 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
FORK Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
WHEELS
FRONT HUB Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
FRONT SKEWER Bontrager Switch thru axle, removable lever
RIM Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
TIRES Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
MAX TIRE SIZE 38mm without fenders, 32mm with fenders
DRIVETRAIN
SHIFTER Shimano 105 R7120, 12 speed
CRANK FSA Vero Pro, 50/34, 172.5mm length
FRONT DERAILLEUR Shimano 105 R7100, 31.8mm clamp, down swing
REAR DERAILLEUR Shimano 105 R7100, 36T max cog
CASSETTE Shimano 105 7101, 11-34, 12 speed
CHAIN Shimano SLX M7100, 12 speed
BOTTOM BRACKET Torque sensor, threaded, 110mm spindle
COMPONENTS
SADDLE Bontrager Verse P3, steel rails
SEATPOST Bontrager carbon, 27.2mm, 8mm offset, 330mm length
HANDLEBAR Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
HANDLEBAR TAPE Bontrager Supertack Perf tape
STEM Size: 54 = Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56 = Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
HEADSET FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
BRAKE ROTOR Shimano RT66, 6-bolt, 160mm
ROTOR SIZE Max brake rotor sizes: 160mm front & rear
E-SYSTEM
BATTERY 250Wh, integrated in down tube
CHARGER 2A, 42V output, 100V-240V AC input
MOTOR Hyena hub drive motor, 40Nm, 250W
